Taramps HV 20.000 CHIPEO Car Audio Amplifier

$329.00 $453.00 $124.00 Off

Free Shipping

2 Year Warranty

30-Day Returns

SECURE AND TRUSTED PAYMENTS WITH:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Experience unmatched audio excellence with this 20,000 Watts RMS powerhouse. Engineered for high performance from sub-bass to mid-highs, it features thermal protection and anti-short circuit safety. Ideal for elevating mid to large car audio systems.
  • IMPEDANCE 0.5 OHMS
  • EFFICIENCY 91% at 0.5 Ohm
  • RANGE 10Hz ~ 10KHz (1dB)
  • MINIMUM SUPPLY VOLTAGE:
  • 100VDC
  • MAXIMUM SUPPLY VOLTAGE:
  • 250VDC
  • CONSUMPTION AT REST:
  • 150mA
  • MAXIMUM MUSIC CONSUMPTION:
  • 67A
  • MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
  • 134A

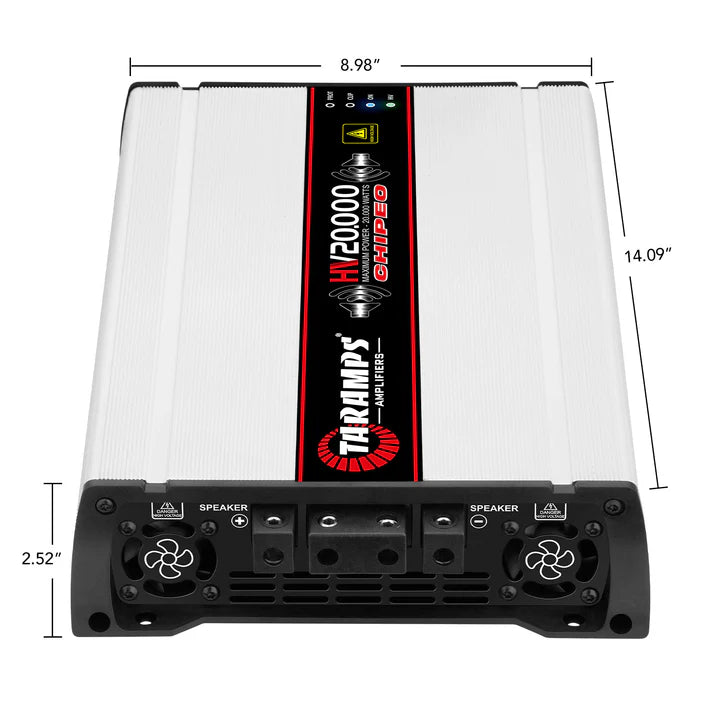

DIMENSIONS 8.98" x 2.52" x 14.09" (228 x 64 x 358mm)
POWER 20.000 Watts
CONNECTIVITY 4
OPERATION CLASS D
NUMBER OF CHANNELS 4
INPUT SENSITIVITY 330mV (Level 100%) @ 0.5 Ohm
SIGNAL TO NOISE RATIO >98dB
FREQUENCY RESPONSE 10Hz ~ 10KHz (1dB)
INPUT IMPEDANCE 22K Ohm
PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage Thermal protection**
WEIGHT 7.92lb (3.60Kg)
EAN 7898556845007
Download Download PDF Link

WHY CHOOSE

Premium audio engineering meets exceptional build quality. Experience the difference that professional-grade equipment makes.

Superior Sound Quality

Experience crystal-clear audio with deep, powerful bass that brings your music to life. The 8" subwoofer delivers exceptional low-frequency response.

Superior Sound Quality

3200W peak power ensures you get the volume and clarity you need. The TS-400x4 amplifier provides clean, distortion-free power across all channels.

Superior Sound Quality

Adjust your audio settings on the fly with the included level remote. Fine-tune your sound without leaving the driver's seat.

Superior Sound Quality

Built with premium materials and advanced engineering. Thermal protection and advanced cooling ensure long-lasting, reliable performance.

THE HV 20.000 CHIPEO

Power, efficiency and high performance are some of the synonyms of this module. It has a maximum power of 20.000 Watts RMS at 0.5 ohm, thermal protection and anti-short-circuit. It is powered by batteries in series, as it uses batteries as its source of power. It is a unique line in its category, delivering extremely high power in mid and large car audio systems. Stands out in quality from sub-bass to mid-highs. High performance in timbres and audio quality.

10,000+ Happy Customers

Absolutely in love!

“I am absolutely in love with my new leather tote! The craftsmanship is incredible, and you can tell that every detail was made with care. It’s the perfect blend of style and durability!”
-Sarah T.
2 days ago

Exceeded My Expectations

This bag exceeded my expectations in every way. The leather is so soft, and the quality is unmatched. I’ve been using it every day, and it only gets better with time!
Emily R.
6 days ago

Beautifully Made, Feels So Personal

I’m thrilled with my purchase. The personal touch in the packaging, including a handwritten note from Clara, made me feel truly valued as a customer. The bag itself is stunning and so well-made.
Laura M.
2 days ago

Finally found the perfect bag!

I've been searching for the perfect leather tote for years, and I finally found it here. The attention to detail and the quality of the leather are outstanding. This bag will last me a lifetime.
Jessica K.
7 days ago

You May Also Like

Frequently Asked Questions

When selecting a car amplifier, consider the following factors: the number of channels you need (e.g., mono, 2-channel, 4-channel), the power output (measured in watts) to match your speakers or subwoofers, the impedance (ohms) compatibility, and the size of the amplifier to ensure it fits in your desired installation location.

To ensure compatibility, check the RMS power rating and impedance of your speakers or subwoofers. Your amplifier should provide an equal or slightly higher RMS power output at the same impedance level. For example, if your speakers are rated at 50 watts RMS at 4 ohms, look for an amplifier that can deliver around 50-75 watts RMS per channel at 4 ohms.

While it's possible to install a car amplifier yourself, it requires some technical knowledge, tools, and understanding of your vehicle's electrical system. If you're not confident in your abilities, it's recommended to have the amplifier installed by a professional to ensure proper and safe installation.

Class A amplifiers offer high sound quality but are inefficient and generate a lot of heat. Class B amplifiers are more efficient but can have distortion at crossover points. Class AB amplifiers combine the benefits of Class A and Class B, offering good sound quality with better efficiency. Class D amplifiers are highly efficient and generate less heat, making them ideal for compact installations, but they may not have the same sound quality as Class AB amplifiers.

To prevent overheating, ensure your amplifier is installed in a well-ventilated area, away from direct sunlight or heat sources. Additionally, avoid pushing the amplifier beyond its limits by setting the gain and volume levels appropriately. If your amplifier has built-in cooling fans, make sure they are not obstructed.

If you have any product or technical questions feel free to reach out to us.

BUSINESS HOURS

Monday to Friday - 8:00 AM to 6:00 PM

QUESTIONS AND PRODUCT SOLUTIONS TARAMPS

Brazil/English email:Service1@taramps.com.br Phone +55 (18) 99751-4273

EXTREME POWER

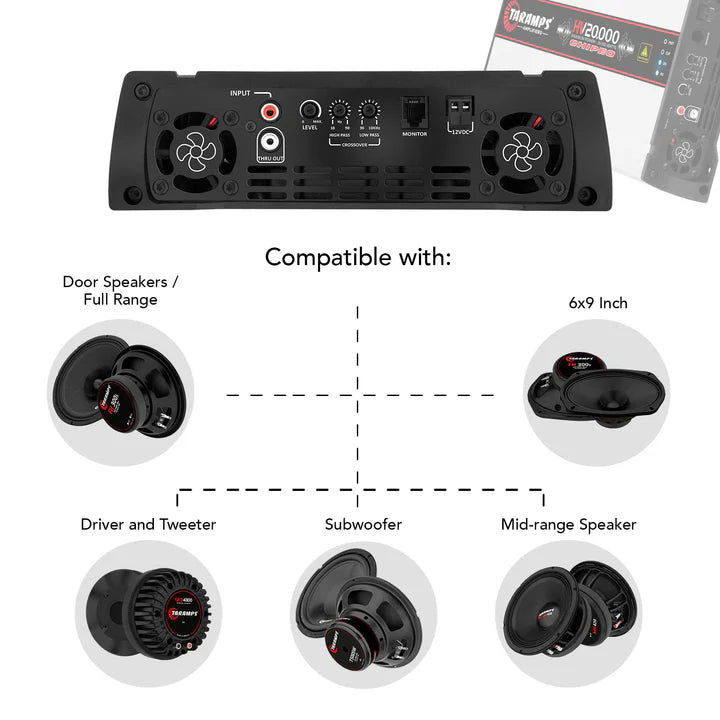

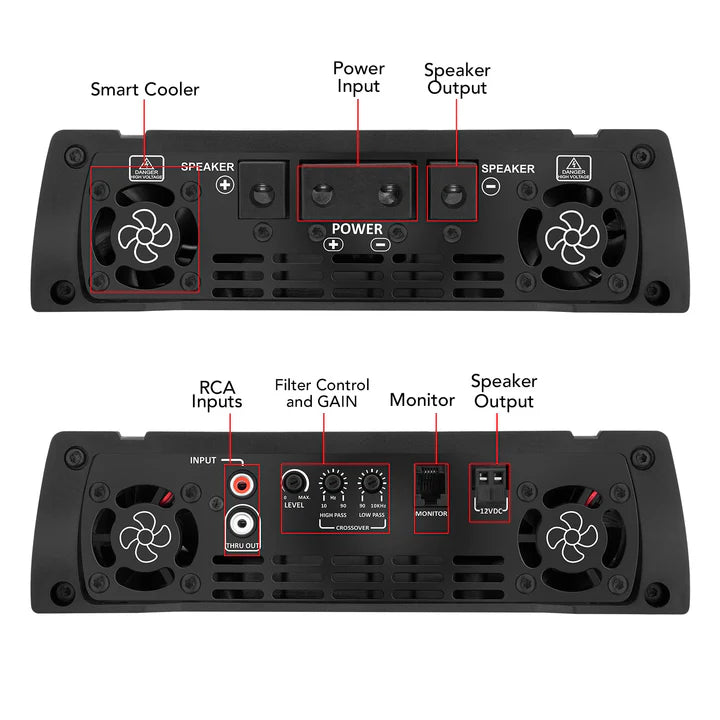

The amplifier has an input unbal that connects the RCA output, Thru output to send the same input signal to the other amplifier. Adjust the sensitivy and frequency of the amplifier input with LEVEL and CROSSOVER. Contains a positive amplifier pre power terminal and four internal ventilation fans.

The amplifier has positive and negative output connector for speakers and positive and negative power input for high voltage.
